KLX230 S – Wellington MotorIndo

Machine

Engine Type	4-stroke single, SOHC, air-cooled
Displacement	233cc
Bore x Stroke	67.0 x 66.0mm
Compression Ratio	9.4:1
Fuel System	DFI® with 32mm Keihin throttle body
Ignition	TCBI Electronic Advance
Transmission	6-speed, return shift with wet multi-disc manual clutch
System Final Drive Type	Chain

Frame Type	High-tensile steel, box-section perimeter
Rake/Trail	27.5°/4.6 in
Overall Length	81.9 in.
Overall Width	32.9 in.
Overall Height	43.7 in.
Ground Clearance	8.3 in.
Seat Height	32.7 in.
Curb Weight	297.7 lb. / 299.9 lb. CA model*
Fuel Capacity	2.0 gal.
Wheelbase	53.5 in.

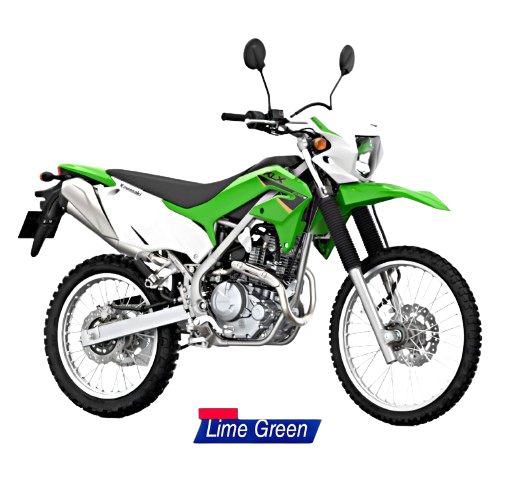

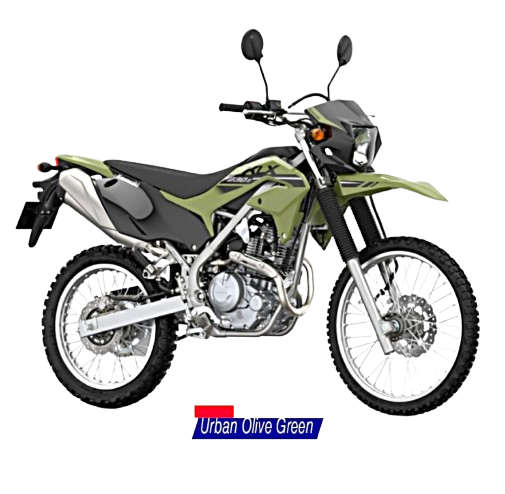

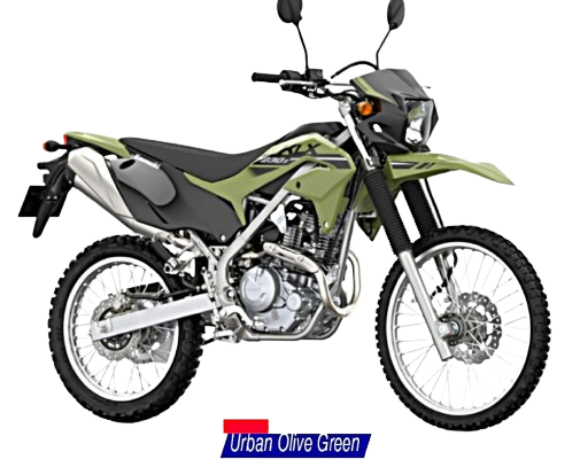

Color Choices	Lime Green, Urban Olive Green / Ebony
Warranty	12 Months

Front Suspension / Wheel Travel	37mm telescopic fork/6.2 in
Rear Suspension / Wheel Travel	Uni-Trak® linkage system and single shock with adjustable spring preload/6.6 in
Front Tire	2.75 x 21
Rear Tire	4.10 x 18
Front Brakes	Single 265mm petal disc with a dual-piston caliper, ABS
Rear Brakes	Single 220mm petal disc with single-piston caliper, ABS
